1.General Description
The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Ics and a backlight unit.

 2. Module Parameter

Features	Details	Unit
Display Size(Diagonal)	8.8”
LCD type	IPS TFT
Display Mode	Transmissive/normaliy black/glare
Resolution	480RGB x1920	Pixels
View Direction	FULL VIEW	Best Image

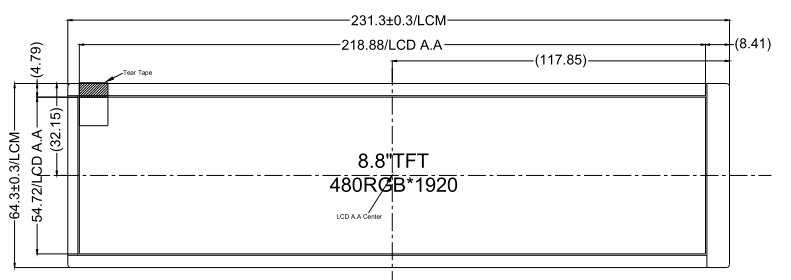

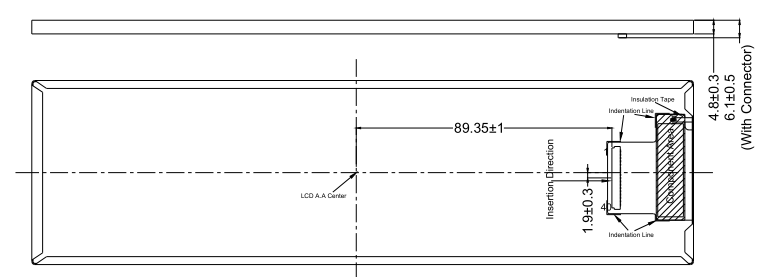

Module Outline	64.3(H) x231.3(V) x 6.1 (T)  (Note1 )	mm
Active Area	54.72(H) x218.88 (V)	mm
Pixel Size	114 (H) x 114 (V)	um
Pixel Arrangement	RGB vertical Stripe
Color	16.7M

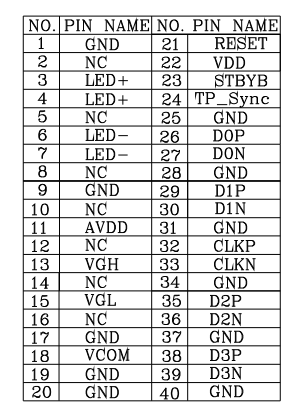

Interface	MIPI
With or Without Touch Panel	Without
Operating Temperature	-20～70	ºC
Storage Temperature	-30～80	ºC
Weight	TBD	g

Note 1: Exclusive hooks, posts , FFC/FPC tail etc.
  3. Absolute Maximum Ratings
V_SS=0V, Ta=25ºC

Item	Symbol	Min.	Max.	Unit
Supply Voltage	VDD	-0.5	4.0	V
	AVDD	7	12.5	V
	VGH	15	26	V
	VGL	-11.5	-4	V
Storage temperature	Tstg	-30	+80	ºC
Operating temperature	Top	-20	+70	ºC

Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.
  4. DC Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Supply Voltage	VDD	3.0	3.3	3.6	V
	AVDD	11.8	12	12.2	V
	VGH	17	18	19	V
	VGL	-11	-10	-9	V
	VCOM	3.66	4.16	4.66	V
Logic Low input voltage	VIL	0	-	0.3*VDD	V
Logic High input voltage	VIH	0.7VDD	-	VDD	V
Current Consumption	IVDD	-	TBD	-	mA

Note：Typ. VCOM is only a reference value, it must be optimized according to each LCM. Be sure touse VR
 5. Backlight Characteristic

5.1. Backlight Characteristic

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	Ta=25ºC,IF=20mA/LED		17	20.4	V
Forward Current	IF	Ta=25ºC	-	160	-	mA
Power dissipation	Pd		-	2720	-	mW
Uniformity	Avg		70	80	-	%
Drive method	Constant current
LEDConfiguration	TBD
